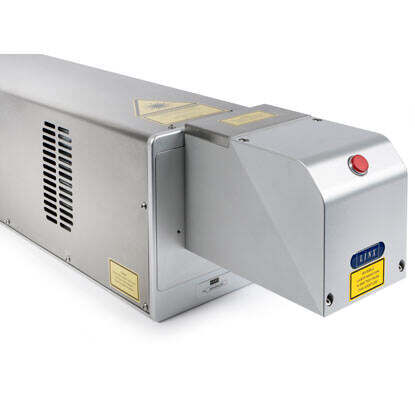

LINX CSL10 & CSL30 Co2 Scribing Lasers

Download Literature button

The new Linx CSL10 and CSL30 scribing CO2 lasers offer the largest marking field in the industry, allowing wide web applications to be addressed with one laser instead of two. In addition, the coders can achieve among the fastest laser markings in the industry -- up to 2,952ft/min (900m/min). Ideal for the requirements of high speed packing and bottling lines, both models can code crisp, permanent text or graphics on many different packaging materials including coated paper and card, plastic, glass, rubber, coated metal and anodized aluminum.

KEY FEATURES

  • Largest marking area in the industry, up to 15.7in x 23.6in (400mm x 600mm), ideal for applications such as flexible sheets for lids
  • IP65 rating options allow either model to operate in harsh, wet and dusty environments such as frozen, dairy, beverage, chemicals and construction
  • Reduces energy usage by up to 50% with the unique VisiCode® function, also designed for producing unsurpassed high quality codes on glass and PET
  • More powerful processing board with the ability to relay the message from the control unit to the marking head more quickly, delivering higher speeds
  • Highly efficient operating system delivering a tube life of around 45,000 hours
  • Over 20,000 standard configurations for a range of marking heads and positions that can be tailored to precise coding application requirements
  • More versatility with an increased choice of conduit lengths (3, 5 and 10m), flexible conduit design, detachable marking head, connectors and conduit, and quick disconnect umbilical cable
  • Ease of set-up and reduction of user error due to an enhanced version of its LinxVision® operating system
Laser Details Linx CSL10 Linx CSL30
Laser type Sealed RF excited CO2
Nominal laser output (10.6) 10W 30W
Laser wave length 10.6μm (Standard) or 9.3μm (PET) 10.6μm (Standard) 10.2μm (Card) 9.3μm (PET)
Laser tube warranty 2 years
Laser Source Life Expectancy 45,000 Hours (on average)
Performance
Line speed Up to 2,952 ft/min (code and substrate dependent)
Marking speed Up to 2,000 characters/sec
No. lines of text Only Limited by Character Size and Marking Field
Character height Up to marking field size
Print rotation 0-360°
Physical Characteristics
Approximate Weight (Marking Unit/Supply Unit) 33.5 lb / 26.5 lb 47 lb / 26.5 lb
Laser Head Protection Class IP54 IP54 or IP65 (optional)
Conduit length 9.8 ft (3 m) - standard, 16.4 ft (5 m) - optional, 32.8 ft (10 m) - optional
Head Mounting Options Down (90°) or Straight Shooter (0°)
Cooling System IP54 Air cooled, IP65 Blower Unit
Supply Voltage/Frequency Auto selection range 100 to 240V
Maximum Power Consumption 0.4kW 0.7kW
Operating Temperature Range 41-104°F Ambient
User Interface
Software LinxDraw compatibility: Windows 7
Easy access operator toolbar Date & time offset, variable text, rotate/move/scale code, adjust laser intensity
Multiple operating languages Arabic, Brazilian Portuguese, Bulgarian, Chinese Simplified, Chinese Traditional, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovak, Spanish, Swedish, Thai, Turkish, Vietnamese
Password Protection Password Protected Security Levels
Marking Formats
Code options Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), ID Matrix, barcodes, graphics and logos, Julian date, Custom date and time formats
Character type Vector fonts
Standard system vector fonts OTF, TTF, PFA, PFB, and SVG fonts
Bar codes Barcodes (BC25, BC25I, BC39, BC39E, BC93, GSI-128, PZN, EAN 8, EAN 13, BC128, EAN 128, POSTNET, SCC14, UPC_A, UPC_E, RSS14TR, RSS14ST, RSS14STO, RSSLIM, RSSLIMGP, RSSEXP) and Datamatrix 2D codes (ECC000, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN, QR, Aztec)
Interfacing
Interface ports 1 detector, 1 encoder, 1 Serial RS232, 1 External RJ45 Ethernet Port, 1 Internal RJ45 Ethernet Port (For Linx Vision)
Computer interface Ethernet
Input/Output options Job select, Good / Bad Mark signal, Interlock, Start / Stop, Ready to Mark, System Ready, Trigger monitor, Trigger enable
